Remplacer les licences CAO par des visualiseurs puissants

Effectuez votre travail plus rapidement et à moindre coût !

Vaut-il la peine d'envisager de remplacer les licences de CAO par des visualiseurs de CAO ? Le problème est qu'aujourd'hui encore, de nombreuses entreprises utilisent des licences CAO coûteuses en dehors du service de conception, du calcul des devis et de la documentation à l'assurance qualité et au marketing. Pour tous les utilisateurs qui n'ont pas d'expérience en CAO, cela signifie une formation longue et fastidieuse à un logiciel de CAO complexe, des frais d'achat et de maintenance élevés et une licence de CAO occupée pendant la durée d'utilisation. Beaucoup ignorent qu'une solution de visualisation intelligente peut prendre en charge toutes ces tâches spécifiques à un service de manière simple et économique et remplacer ainsi les licences CAO coûteuses - car à cet égard, les solutions de visualisation modernes n'ont rien à envier aux systèmes de CAO.

Utilisez la 3DViewStation pour remplacer les licences de CAO :

  • La 3DViewStation est une visionneuse CAO 3D avec plus de 180 caractéristiques & fonctions pour faire plus que simplement regarder. Ils peuvent également mesurer, couper et comparer, entre autres. Calculez également les volumes ou modifiez les couleurs ou les transparences.

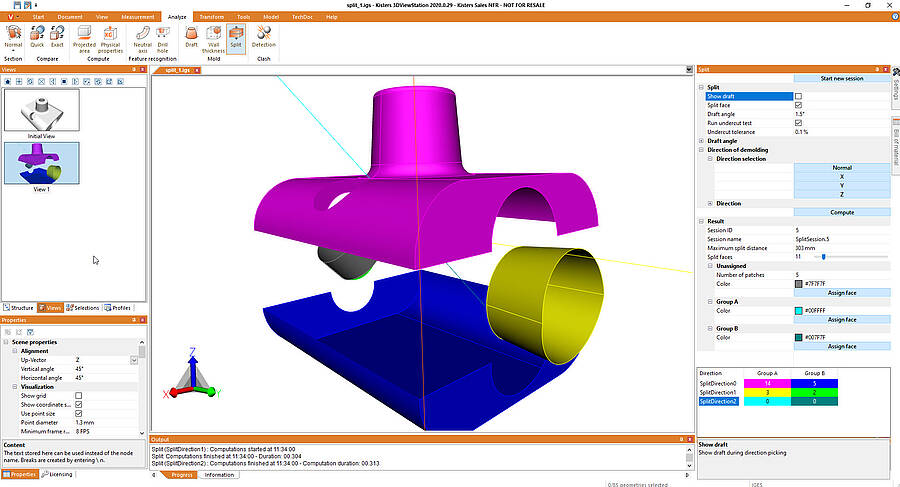

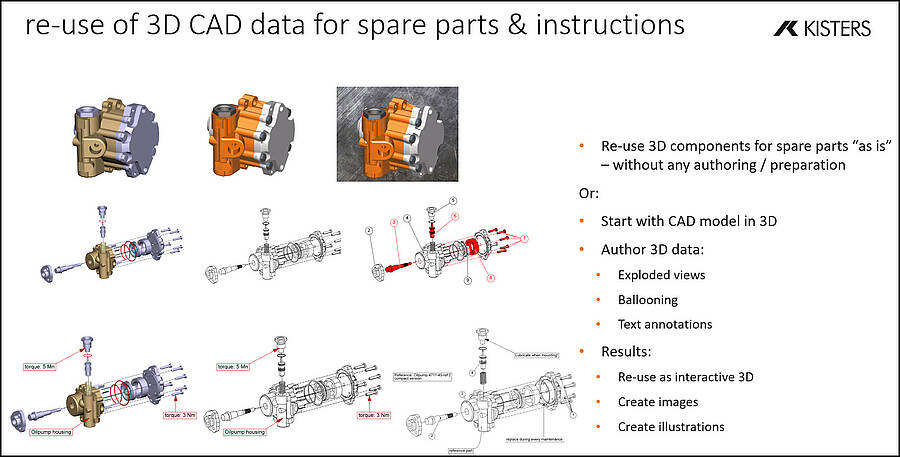

  • La 3DViewStation est une visionneuse qui offre également des fonctions avancées de maquette numérique (DMU). Effectuez facilement des analyses de clash, de split, de pente de démoulage, de contre-dépouille, d'épaisseur de paroi et de bande de distance. Utilisez également la 3DViewStation comme outil d'auteur pour créer des vues, par exemple pour préparer des réunions de révision. Il est également possible d'obtenir des vues éclatées, y compris des graphiques de numéros de position, pour la documentation technique, les applications de service après-vente ou de pièces détachées.
  • La 3DViewStation est une visionneuse qui prend en charge le PMI. Créez également vos propres balises, que vous exporterez ensuite vers STEP en tant que PMI.
  • Créez vos propres mockups (prototypes numériques) avec la 3DViewStation. En chargeant d'abord un modèle, puis en important d'autres données CAO de différentes sources dans la même scène. C'est pourquoi il s'agit d'un véritable visionnage 3D multi-CAD !

Avantages de la 3DViewStation :

  • La 3DViewStation est une visionneuse CAO 3D extrêmement rapide : Chargez un assemblage Catia natif de 300 Mo en quelques secondes ou en 1 seconde seulement sous forme de fichier 3DVS. Nous vous faisons gagner du temps.
  • La 3DViewStation est abordable - vous économisez de l'argent.
  • La 3DViewStation est facile à utiliser - aucune formation n'est nécessaire.
  • La 3DViewStation peut être utilisée comme une véritable visionneuse MultiCAD sur les PC de bureau, les ordinateurs portables de bureau, les tablettes, les SmartPhones et dans les environnements VR.
  • La 3DViewStation peut être utilisée comme visionneuse CAO 3D et CAO 2D, de manière autonome ou intégrée à n'importe quel système leader

Voici un lien vers un cas client sur le sujet.

You are asking yourself whether CAD systems can be replaced by a CAD viewer like 3DViewStation?

It is obvious that CAD systems and CAD viewers have different functions and purposes. Therefore, viewers can replace CAD systems in many, but certainly not all cases. Here's some guidance for now:

CAD systems:
Computer-aided design (CAD) systems are comprehensive software solutions that engineers, designers, and architects use to create, modify, and analyze 2D and 3D models of products, components, buildings, and more. They provide a variety of functions that cover the entire design process spectrum, including modeling, drawing, simulation, analysis and data management. CAD systems are often complex, powerful, and expensive because they are designed specifically for professional engineers and designers.

CAD viewer:
CAD viewers, such as Kisters 3DViewStation, are software applications that allow users to view 3D CAD models as well as 2D documents and drawings without being able to constructively modify them. They are typically less expensive and less feature-rich than CAD systems. CAD viewers are particularly useful for sharing CAD files with others who don't necessarily need access to a full CAD system. With a CAD viewer, users can view the model, view sections, read dimensions and add comments, but they can't make changes to the design itself.

Now, whether you can replace CAD systems with 3DViewStation depends on your specific needs and workflows. Therefore, questions about your requirements are our top priority.
3DViewStation is ideal when you need to review CAD models, share them with others or present projects. Users can view and comment on the models without changing the original CAD model. In practice, for every CAD designer there might be 10 to 100 people, who do not design but need to reuse the CAD data. Most of these people can work with 3DViewStation, as by providing over 180 functionalities, it will cover many processes in the company.

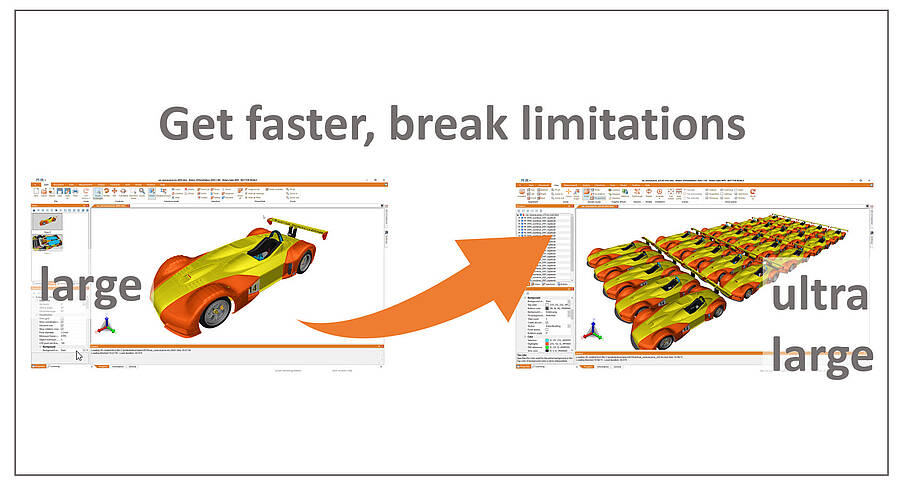

Especially if you are working on complex designs, the use of 3DViewStation is highly recommended. With it, you load extremely large models in a very short time, which you could never load with a CAD system. Some customers then select sub-assemblies in 3DViewStation, which are then transferred to the CAD system for processing. We call this approach "visual-load-to-CAD".

However, if you need to perform simulations or make detailed modifications, CAD systems are indispensable. They provide the necessary tools and functions to create and optimize the design.
So there are very many cases where companies replace CAD systems with 3DViewStation to become more efficient and reduce costs.

In which areas is 3DViewStation suitable to replace CAD systems?

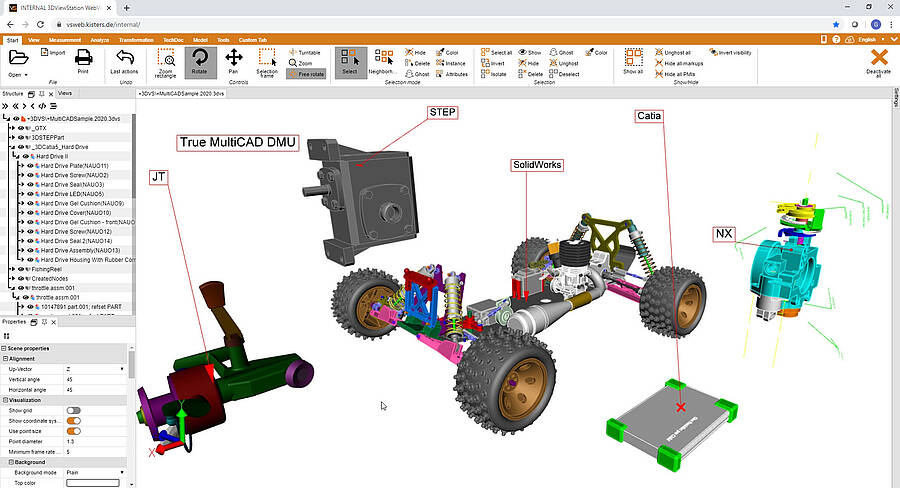

As a true multi-CAD viewer, 3DViewStation allows users to open and view CAD models in multiple formats without the need for an expensive CAD license. This facilitates collaboration with customers, suppliers, team members and other stakeholders who may not have a CAD system, or at least not all of the optional modules.

  • Very often, therefore, Kisters 3DViewStation is found in the sales department, where CAD data from a wide variety of CAD systems must be loaded in order to subsequently calculate a quote. Companies that manufacture complex products can use 3DViewStation to present high-quality 3D models to their customers. This can be useful in sales presentations, trade shows or training sessions.
  • 3DViewStation is great for viewing and visualizing 3D CAD models in high quality. It offers powerful features such as creating sections, comparing 2 version states, adding annotations and dimensions, and using materials and textures to vividly present designs. Helpfully, animated playback is available leveraging previously defined views.
  • Since 3DViewStation is much easier and more intuitive to use than a CAD system, non-designers in particular find their way around it very quickly. As a rule, no or very little training is required - quite in contrast to CAD systems.

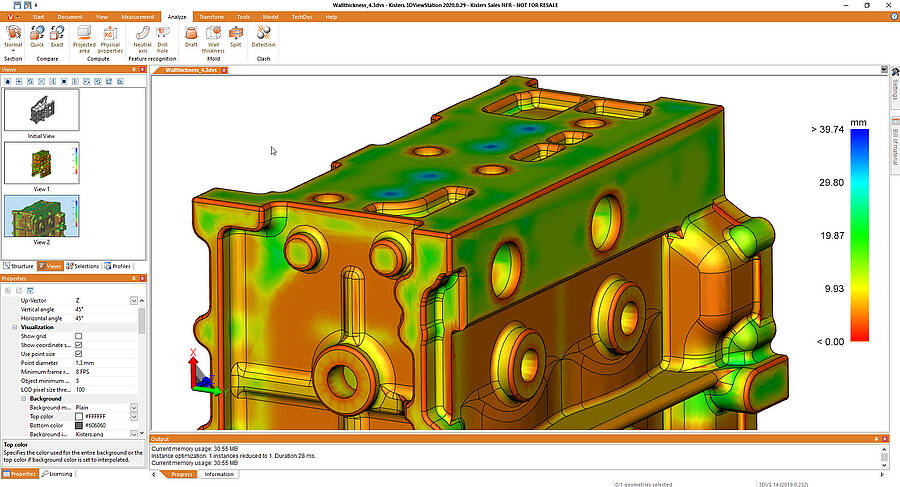

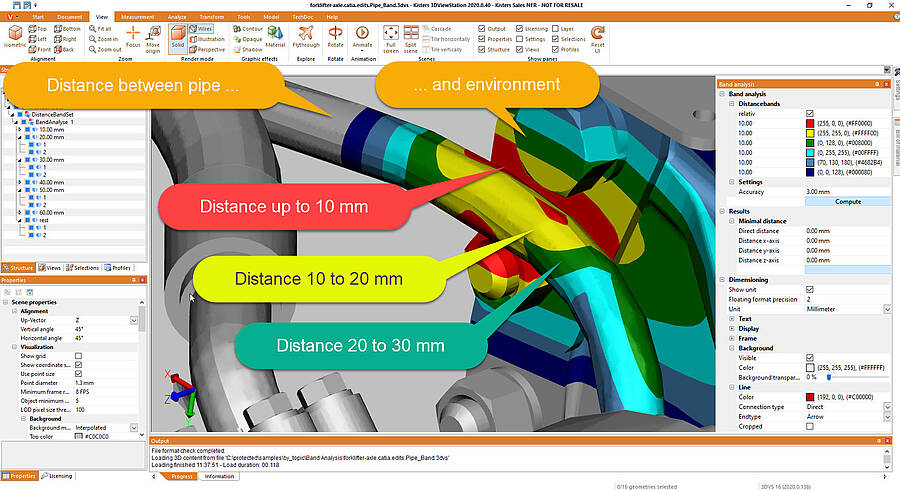

  • There are now many areas of application where one would expect to use a CAD system, but which are covered by 3DViewStation. These include our advanced features such as wall thickness analysis, collision & clash detection, distance analysis, draft angle analysis, split function and curvature analysis. These are very fast, yet very accurate - and extremely affordable compared to CAD systems.
  • For large projects with extensive and extremely complex designs, a CAD system - as described above - is often overwhelmed. 3DViewStation, on the other hand, offers extremely high performance and stability, which are necessary for the efficient visualization of such projects. We know of customers who use 3DViewStation to view and review assemblies consisting of more than 200 million parts, even in the browser.
  • In most companies, only a few employees have access to a CAD system. With 3DViewStation, non-design engineers can present their work and discuss it with colleagues without access to a full CAD system. Change requests can be easily applied to a CAD model as markups in the 3D CAD Viewer and thus recorded during a meeting. Approvals are more timely when a fast CAD viewer like 3DViewStation is used during reviews.
  • 3DViewStation supports a wide range of CAD file formats. This allows users to open and view CAD models from a variety of sources without having to first convert them to a neutral format or even to the in-house CAD system's data format. If the CAD data becomes extremely complex, we recommend converting it to lightweight formats, such as JT. However, the fastest by far is our 3DVS format.
  • In some cases, companies require customized functions or specific adaptations that can be realized with 3DViewStation either by means of UI configuration or by using APIs.
  • In addition, 3DViewStation can be used in training environments to show 3D models to learners and explain how complex products or processes work.

It is important to emphasize that 3DViewStation is never intended to and can never replace a CAD system in all areas, as it is still primarily a viewer and not a comprehensive CAD software. However, it is so feature-rich that our customers like to call it a "CAD system without a modeler". For complex design tasks, simulations or specialized requirements, a full-featured CAD system is still required. However, 3DViewStation can be a valuable addition to improve efficiency and communication, especially when it comes to sharing CAD models with a broader user group.

To ask even more clearly: in which areas is 3DViewStation not suitable to replace CAD systems?

3DViewStation is primarily a 3D CAD but also 2D viewer and does not provide the extensive modeling and design tools available in a full-fledged CAD system. Dedicated CAD software solutions are required to create and edit CAD models.
When it comes to performing simulations, calculations or complex analyses based on CAD models, a CAD system with integrated FEM (Finite Element Method) or CFD (Computational Fluid Dynamics) capabilities is required. 3DViewStation does not provide such advanced analysis capabilities.
Leading systems to which CAD systems are connected today offer important functions for data management and version control of CAD files. They allow users to efficiently organize and manage designs and access previous versions. 3DViewStation does not have such advanced data management capabilities, even though it is very often integrated with these very same leading systems.
Some industries or companies may require specialized functions that are only available in certain CAD systems. 3DViewStation will certainly not cover all specific requirements needed in certain industries or companies.

In summary, 3DViewStation can be a good complement or alternative to a CAD system in many areas, especially when it comes to viewing, collaboration and communication. However, it cannot completely replace certain functions and requirements that are present in a comprehensive CAD system. It is therefore important to consider the specific requirements of a project or organization to decide which areas 3DViewStation should cover as part of a larger CAD software ecosystem.

And finally: are there synergies of CAD viewers like 3DViewStation and CAD systems?

Yes, there are definitely synergies between CAD viewers and CAD systems. The two can be used in combination to improve efficiency and productivity when working with 3D CAD models.

  • 3DViewStation provides a user-friendly way to view 3D CAD models without the need for an expensive CAD license. It allows users to view and analyze the models, which improves collaboration and communication between project stakeholders. 3D CAD viewers are ideal for sharing designs with customers, suppliers, team members and other stakeholders.
  • When it comes to sharing 3D models across an organization 3DViewStation can be a cost-effective alternative. Since it is hardly less feature-rich on the one hand and less expensive than full-fledged CAD systems on the other, it can be used to enable sharing of CAD data with a wider range of users without having to purchase additional CAD licenses.
  • 3DViewStation allows people, who have no special training in using a CAD system, to review and approve 3D models. This can be very useful for design reviews and approval processes.
  • In presentations and training sessions 3DViewStation can be used to clearly illustrate and explain complex products or processes. This is especially helpful when the audience has no experience with CAD software.
  • While 3DViewStation is not a classic converter, it allows users to quickly open and convert CAD files in various formats. However, the focus is on viewing 3D and 2D CAD data without having to convert it to the same CAD format first. This is especially useful when models come from different sources.
  • CAD viewers such as 3DViewStation are typically more streamlined applications than full-fledged CAD systems and therefore often have shorter load times for large 3D models.

3DViewStation is available in both Desktop and WebViewer versions, which can be used on PCs, tablets and smartphones. This makes it easier for users to access CAD models even when they are away from their workstations.
So, in conclusion, the combination of CAD viewers and CAD systems makes it possible to leverage the strengths of both applications and optimize all processes associated with development and manufacturing.

Talk to us now!
